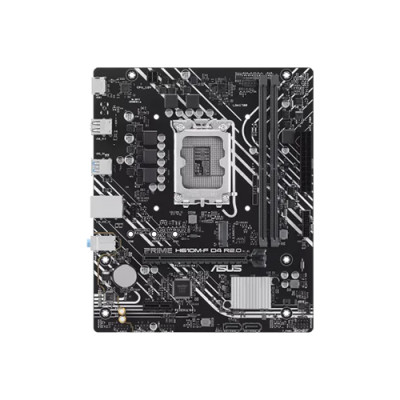

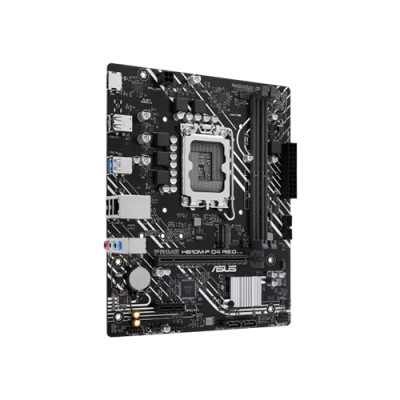

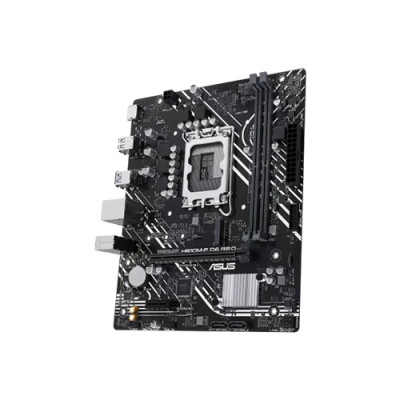

ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard
| Model: PRIME H610M-F D4 R2.0 |
| Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700) |
| Supported Memory: 2 x DIMM, Max. 64GB, DDR4 |
| Graphics Output: 1x HDMI |
| Features: 1x M.2 slot, 1x Realtek 1Gb Ethernet |
Specifications
| Key Features | |
| key1 | Model: PRIME H610M-F D4 R2.0 |
| key2 | Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700) |
| key3 | Supported Memory: 2 x DIMM, Max. 64GB, DDR4 |
| key4 | Graphics Output: 1x HDMI |
| key5 | Features: 1x M.2 slot, 1x Realtek 1Gb Ethernet |
| Basic Information | |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*
Supports up to Intel 65W CPU
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel H610 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor
8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Expansion Slots | |
| PCI | Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot |
| M.2 Socket | Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) |
| Memory | |
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module |
| Maximum Memory | Max. 64GB |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| USB (s) | 2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A) |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet |
| Supported Storage | Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
2 x SATA 6Gb/s ports |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Back Panel I/O Ports
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMITM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (F_AUDIO)
1 x Speaker header
1 x 10-1 pin System Panel header |
| Graphics | |
| Graphics | 1 x HDMI port
Supports 4K@60Hz as specified in HDMI 2.1. |
| Other Features | |
| Special Features | ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Aluminum heatsink design |
| Bundled Software | ASUS Exclusive Software
Armoury Crate
AI Suite 3
- EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |
| Warranty | |
| Warranty Details | 3 years |
Description
ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard
The ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard is designed for users seeking performance, stability, and efficiency for modern computing. Built with the Intel H610 chipset, this motherboard supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors, delivering reliable speed for multitasking, business, or entertainment use. Featuring dual DDR4 DIMM slots, it supports up to 64GB of DDR4 RAM with speeds reaching 3200MHz, ensuring smooth data handling and faster load times. With Intel Turbo Boost Technology and XMP (Extreme Memory Profile) support, users get optimized system responsiveness. For expansion, the ASUS PRIME H610M-F D4 R2.0 motherboard includes a PCIe 4.0 x16 graphics slot for GPUs and a PCIe 3.0 x1 slot for add-on cards. Storage is efficient with a 32Gbps M.2 slot (PCIe 3.0 x4) and two SATA 6Gb/s ports, allowing high-speed SSD and HDD configurations. The Realtek 1Gb Ethernet ensures stable online connectivity, while multiple USB ports — including two USB 3.2 Gen 1 Type-A and six USB 2.0 ports — provide versatile connection options. The HDMI 2.1 port supports 4K 60Hz display output, perfect for high-definition monitors and streaming setups. For superior audio, the motherboard integrates Realtek 7.1 Surround Sound with premium capacitors and audio shielding, offering rich, clear, and immersive sound quality. Built with ASUS 5X Protection III technologies like LANGuard, SafeSlot Core, DIGI+ VRM, and overvoltage protection, it ensures durability, efficiency, and long-term reliability. The Q-DIMM and Q-Slot design make component installation simple, while a large aluminum heatsink provides optimal thermal performance. Compact yet powerful, this micro-ATX motherboard is ideal for small desktop builds. Compatible with Windows 11 and Windows 10 (64-bit), the ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 motherboard offers excellent value for those building a budget gaming PC or a reliable office system in Bangladesh. With ASUS Armoury Crate and AI Suite 3 software, users can easily monitor performance and customize system settings. Buy the ASUS PRIME H610M-F D4 R2.0 motherboard at the best price in Bangladesh from Farajtek and enjoy durable performance built for the latest Intel processors.
