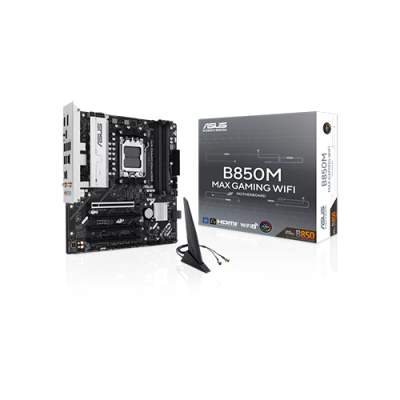

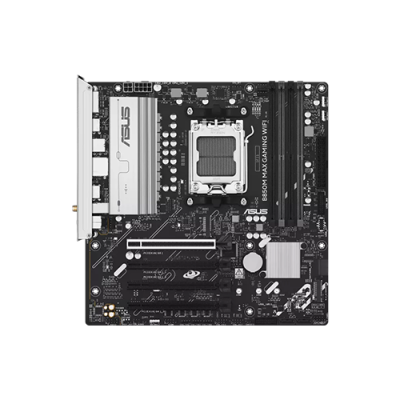

Asus B850M MAX GAMING WIFI AM5 mATX Motherboard
| Model: B850M MAX GAMING WIFI |
| Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket |
| Supported RAM: 4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC) |
| Graphics Output: 1 x HDMI port, 1 x DisplayPort |
| Features: 3 x M.2 slots, Wi-Fi 6, Bluetooth v5.4, 1 x Realtek 1Gb Ethernet |
Specifications
| Key Features | |
| key1 | Model: B850M MAX GAMING WIFI |
| key2 | Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket |
| key3 | Supported RAM: 4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC) |
| key4 | Graphics Output: 1 x HDMI port, 1 x DisplayPort |
| key5 | Features: 3 x M.2 slots, Wi-Fi 6, Bluetooth v5.4, 1 x Realtek 1Gb Ethernet |
| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers |
| Expansion Slots | |
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
3 x PCIe 4.0 x16 slot (support x1 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
3 x PCIe 4.0 x16 slot (support x1 mode) |
| Memory | |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP) |
| Maximum Memory | 256GB |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | Rear USB (Total 9 ports)
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
5 x USB 2.0 ports (5 x Type-A)
Front USB (Total 9 ports)
1 x USB 5Gbps connector (supports USB Type-C)
2 x USB 5Gbps header support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet
ASUS LANGuard |
| Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
AMD B850 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports |
| Wireless Communication module | Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.4 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Internal I/O Ports | 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
5 x USB 2.0 ports (5 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectors
1 x 4-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
2 x USB 5Gbps header support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header |
| RAID | AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10 |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) |
| Graphics | |
| Graphics | Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports max. 8K@30Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1. |
| Other Features | |
| Special Features | ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers |
| Bundled Software | ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
ASUS AI Advisor
ASUS Driver Hub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
|
| Warranty | |
| Warranty Details | 3 Years |
Description
Asus B850M MAX GAMING WIFI AM5 mATX Motherboard
The Asus B850M MAX GAMING WIFI AM5 mATX Motherboard is powered by the AMD B850 chipset, delivering exceptional performance and stability for gaming PCs and high-performance desktops in Bangladesh. This Asus motherboard is compatible with AMD Ryzen 9000, 8000, and 7000 series processors, providing users with next-gen computing speed and reliable multitasking for both gaming and professional applications. Equipped with four DDR5 DIMM slots, the B850M MAX GAMING WIFI motherboard supports up to 256GB DDR5 memory with speeds reaching 8000+ MT/s (OC). Dual-channel architecture, AMD EXPO, and ASUS Enhanced Memory Profile (AEMP) ensure optimized performance for gaming, content creation, and AI workloads. Non-ECC, un-buffered DDR5 RAM with On-Die ECC further guarantees smooth multitasking and system stability. For high-quality visuals, this Asus motherboard provides DisplayPort and HDMI outputs, supporting up to 8K at 30Hz and 4K at 60Hz, depending on your processor. Expansion options are versatile, with PCIe 5.0 and PCIe 4.0 slots ready for high-speed graphics cards, add-on cards, and future upgrades. Storage flexibility is outstanding, offering three M.2 slots with PCIe 5.0 and 4.0 support, alongside four SATA 6Gb/s ports. Users can configure RAID 0, 1, 5, and 10 setups using AMD RAIDXpert2 Technology, ensuring enhanced performance and reliable data protection.
Networking is seamless with Realtek 1Gb Ethernet featuring ASUS LANGuard, integrated Wi-Fi 6, and Bluetooth 5.4, providing lag-free online gaming and fast data transfers. The rear I/O panel includes nine USB ports, with USB Type-C and 10Gbps support, complemented by premium 7.1-channel Realtek HD Audio for immersive sound. Additional features include ASUS 5X Protection III for hardware safety, customizable Aura Sync RGB lighting, Fan Xpert 2+ for thermal control, Armoury Crate software for system management, and BIOS FlashBack for effortless updates. The Asus B850M MAX GAMING WIFI AM5 motherboard is a perfect choice for Bangladeshi gamers, PC builders, and tech enthusiasts seeking performance, reliability, and advanced features in one compact mATX motherboard.
Buy Asus B850M Max Gaming WiFi AM5 mATX Motherboard in Bangladesh – Farajtek
In Bangladesh, you can buy the original Asus B850M MAX GAMING WIFI AM5 mATX Motherboard from Farajtek with complete reliability. Farajtek offers a wide selection of the latest Asus AMD motherboards suitable for high-performance desktop PCs. You can place your order online or visit the nearest Farajtek outlet to enjoy the best price in BD. The Asus B850M MAX GAMING WIFI AM5 mATX Motherboard is backed by an official 3-year warranty for total peace of mind.
What is the price of Asus B850M MAX GAMING WIFI Motherboard in Bangladesh?
The current price of the Asus B850M MAX GAMING WIFI Motherboard in Bangladesh is 29,200৳. You can purchase this Asus B850M MAX GAMING WIFI Motherboard at a competitive price directly from our online store or by visiting any Farajtek showroom near you.
