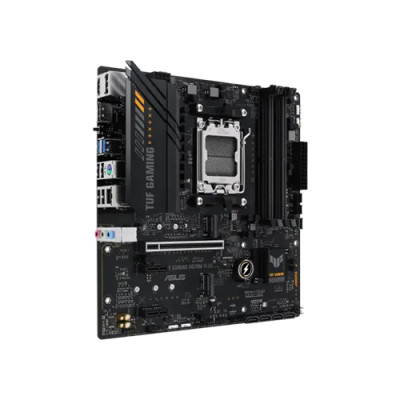

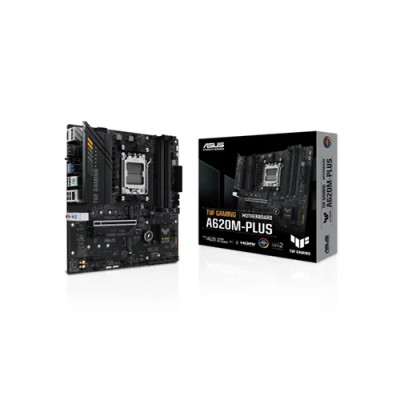

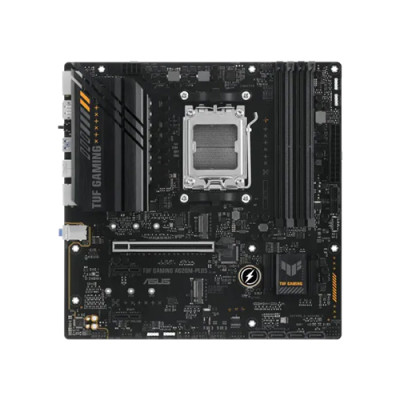

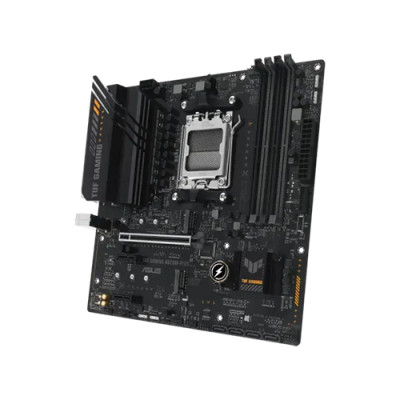

ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard
| Model: TUF GAMING A620M-PLUS |
| Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5 |
| Supported Memory: 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC) |
| Graphics Output: 2 x DisplayPort, 1 x HDMI port |
| Features: 1 x Realtek 2.5Gb Ethernet |
Specifications
| Key Features | |
| key1 | Model: TUF GAMING A620M-PLUS |
| key2 | Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5 |
| key3 | Supported Memory: 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC) |
| key4 | Graphics Output: 2 x DisplayPort, 1 x HDMI port |
| key5 | Features: 1 x Realtek 2.5Gb Ethernet |
| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors |
| Chipset | AMD A620 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers |
| Memory | |
| Type |
DDR5 |
| Slots |
4 x DIMM |
| Supported Memory | DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II |
| Maximum Memory |
128GB |
| Connector & Ports | |
| HDMI |
1 x HDMI |
| Display Port (s) | 2 x DisplayPort |
| USB (s) |
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| LAN Port (s) |
1 x Realtek 2.5Gb Ethernet
TUF LANGuard |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD A620 Chipset
4 x SATA 6Gb/s ports |
| Audio |
3 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| Graphics | |
| Graphics |
2 x DisplayPort**
1 x HDMI port***
** Support max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1. |
| Other Features | |
| Special Features | ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers |
| Bundled Software | ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |
| Warranty | |
| Warranty Details |
3 Years |
Description
ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard
The ASUS TUF GAMING A620M-PLUS AM5 Micro-ATX Motherboard is built for next-level gaming performance and powerful AMD Ryzen 7000 Series processors. Designed with the AMD A620 chipset, this gaming motherboard supports the latest DDR5 memory up to 128GB with speeds reaching 6400MHz (OC), ensuring fast multitasking and smooth gameplay. It features dual-channel architecture and AMD EXPO memory overclocking support for stable and optimized system performance. The ASUS TUF GAMING A620M-PLUS comes with 2 x DisplayPort and 1 x HDMI outputs, offering support for 8K at 60Hz and 4K at 60Hz high-resolution displays, perfect for gamers and content creators in Bangladesh. It includes 1 x PCIe 4.0 x16 slot and 2 x PCIe 3.0 x1 slots, giving users room for graphic cards and expansion cards. For storage, it offers 2 x M.2 PCIe 4.0 x4 slots and 4 x SATA 6Gb/s ports, allowing faster game loading and file transfer speeds. With Realtek 2.5Gb Ethernet, USB 3.2 Gen 1, and 7.1 Surround Sound Audio, this ASUS AM5 motherboard delivers both ultra-fast networking and immersive sound quality. Built with TUF Protection, military-grade components, and Thermal Solution cooling technology, it ensures long-lasting durability and stable performance even under heavy loads. The ASUS TUF GAMING A620M-PLUS Motherboard also includes ASUS Armoury Crate and AI Suite 3 software for system control, fan management, and real-time hardware monitoring. It supports both Windows 11 and Windows 10 64-bit, making it an ideal choice for PC builders, gamers, and tech enthusiasts in Bangladesh who want a reliable AM5 motherboard for their next gaming PC build.
