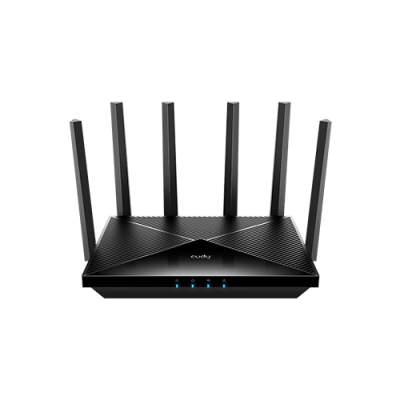

CUDY WR11000 - Tri Band BE11000 Gigabit Smart Wi-Fi 7 Router
| Qualcomm 1.5 GHz Quad-Core CPU |
| 6-Stream Tri-Band Wi-Fi 7 |
| 5.7 Gbps + 4.3 Gbps + 688 Mbps 1 |
| 4× 2.5G Ethernet Ports |
| Cudy Mesh, VPN Server and Client |
| Cudy App, Cloud Control |
Specifications
| Key Features | |
| key1 | Qualcomm 1.5 GHz Quad-Core CPU |
| key2 | 6-Stream Tri-Band Wi-Fi 7 |
| key3 | 5.7 Gbps + 4.3 Gbps + 688 Mbps 1 |
| key4 | 4× 2.5G Ethernet Ports |
| key5 | Cudy Mesh, VPN Server and Client |
| key6 | Cudy App, Cloud Control |
| Key Feature | |
| Model | WR11000 |
| Memory/Storage | Flash/ROM: 128 MB (1 Gbit) NAND
DDR/RAM: 512 MB (4 Gbit) DDR4 |
| General | Operation Modes: Wi-Fi Router, Access Point, Range Extender, WISP, Client
Mesh: Cudy Mesh
Mesh Backhaul: Wireless Backhaul, Wired Backhaul
Multi-Band Backhaul: true
WAN Mode: DHCP, Static IP, PPPOE
Internet Failover Sequence: WAN, WISP |
| Wireless | Wi-Fi Standards: Wi-Fi 7
Max Wi-Fi Modulation: 4K-QAM
Wi-Fi Efficiency: MLO, MRU, Puncturing, OFDMA, MU-MIMO, BSS Color
Max Capacity: 768
Recommended Client Upper Limit: 300
Max Wi-Fi Channel Width: 320 MHz
Wi-Fi Security: WPA/WPA2/WPA3
Guest Network: 2.4 GHz, 5 GHz, 6 GHz
WPS: True |
| Network Standard | QoS: Per-User Rate Limiting
DHCP: Address Reservation, DHCP Client List, Server
IP Versions: IPv4/IPv6
IPv6 Protocols: Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite
IPTV/VLAN: Bridge, Tag VLAN
TTL Customization: Extend, Spoof, Custom
IGMP: IGMP Proxy, IGMP Snooping
Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
Firewall: SPI Firewall, DoS Protection, Block PING
Application Layer Gateway:
IPSec Passthrough
L2TP Passthrough
PPTP Passthrough
FTP Passthrough
TFTP Passthrough
H323 Passthrough
SIP Passthrough
RTSP Passthrough |

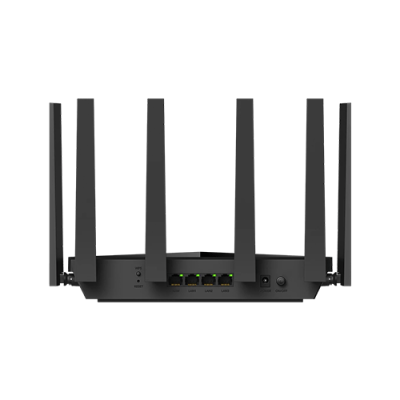

| Interfaces | 2.5G RJ45 Ports: 4
Ethernet Notes: 1× WAN port, the rest are LAN ports
LED: TBD
Physical Buttons: Power On/Off Button. WPS Button, Reset Button
Power Input: DC Jack |
| Management | All Devices Management: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding
Per-Devices Management: Intentional On/Off, VPN On/Off, Online Time Schedule, Device Rename
Content Management: Domain Filter, IP Filter |
| System | LED Control: true
Local Control Method: Config Web Page, App Control
Remote Control Method: Config Page via HTTPS, App Control, TR069/TR098/TR111/TR181
Firmware Upgrade: Local Update, App (Over the Air), Online Update
Reliability: Timed Reboot, Backup and Restore
Diagnostic Tools: Diagnosis, Ping, Traceroute, NSLookup, System Log
Languages: English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese |
| Dashboard | Panel:
Internet Status
Mesh Status
Devices Management
WAN Status
LAN Status
WISP Status
Wi-Fi Status
VPN Status
DHCP Server Status
System Version
Charts:
Mesh Topology
Internet Speed
WISP Speed
Wi-Fi Speed |

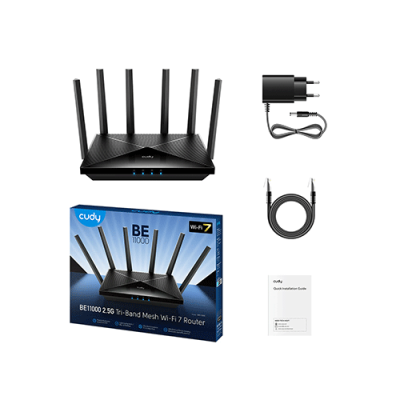

| Included in the Box | WR11000
Power Adapter
Ethernet Cable
Installation Guide |
| Power Source | |
| Reliability | Environment:
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing |
| Power | |
| Power Consumption | Power Methods: DC
DC: 12V 2A
Power Adapter:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 2A DC |
| Physical Specification | |
| Dimensions | Dimension:
253×152.5×48.2 mm
9.96×6×1.9 inches |
| Warranty | |
| Warranty Details | 1-Year Brand Warranty |
Description
CUDY WR11000 - Tri Band BE11000 Gigabit Smart Wi-Fi 7 Router
CUDY WR11000 - Tri Band BE11000 Gigabit Smart Wi-Fi 7 Router is created for the highest speed, big coverage, and low latency requirements. The first is equipped with a Qualcomm 1.5 GHz Quad-Core CPU, which enables faster and more reliable performance in multiple devices, at the same time. This tri-band router offers a combined Wi-Fi speed of 10.6 Gbps, which is divided into three frequency bands - 5.7 Gbps on the first 5GHz band, 4.3 Gbps on the second 5 GHz band, and 688 Mbps on the 2.4 GHz band. This, in a way, ensures that connectivity for gaming, streaming, or even any data-intensive application will be seamless. The WR11000 has four dual-core 2.5G Ethernet ports for Wired Gigabit connectivity of gaming consoles, PCs, and NAS devices. It can connect up to 300 devices, making it ideal for large families or small workplaces. They are designed to provide a coverage that ranges up to 140 m² (1,500 ft²), thus, you should be sure that every corner of your space will receive a strong signal. The advanced FEM technology is the eFEM and it aims at increasing the signal strength and range to still penetrate through walls and barriers.
Special Features of CUDY WR11000 - Tri Band BE11000 Gigabit Smart Wi-Fi 7 Router:
- 6-Stream Tri-Band Wi-Fi 7
- 4× 2.5G Ethernet Ports
- 300 Connected Devices
- Covers 140 m² (1,500 ft²) with eFEM
- Cudy Mesh, VPN Server, and Client
- Cudy App, Cloud Control
Cudy WR11000 supports Mesh networking, which allows you to connect other Cudy routers to your existing system to enhance the network coverage in your home or working space. It also has a VPN server and client, these allow one to access their home network when they are in a remote location securely. The Cudy App also has the benefits of easy setup, as well as the added convenience of cloud control. Whether you are going to play video games, watch movies in 8K, or if you are going to control numerous devices connected to the Internet, the Cudy WR11000 BE11000 2.5G Mesh Wi-Fi 7 Router guarantees optimal performance with the lowest latency and maximum speed.
